The manifold is a single casting for inlet and exhaust.  Depending on how the manifold is machined and mounted, it is possible to have the carburettor on the top or bottom of the manifold, and the exhaust exit from the front or rear of the engine.

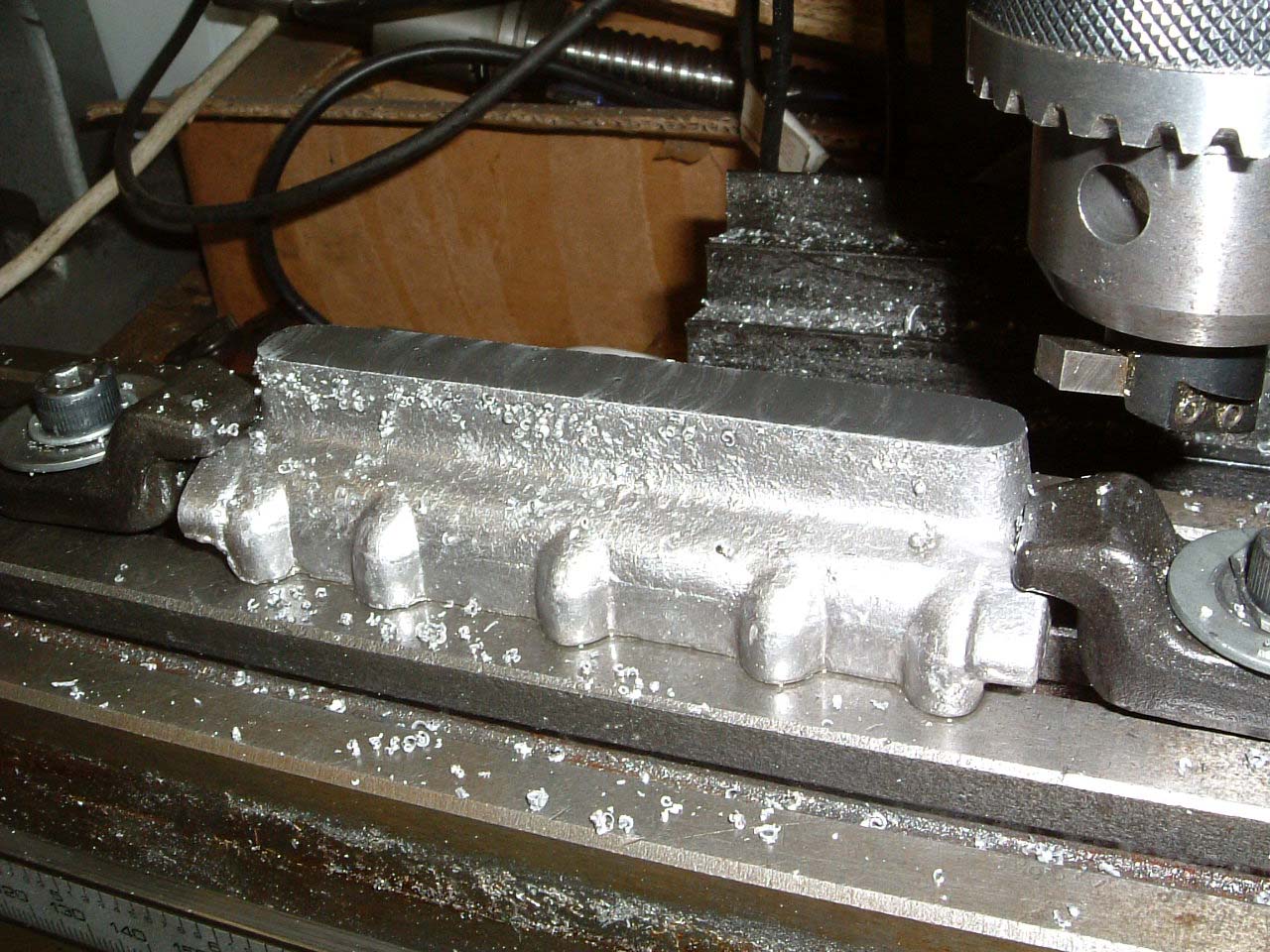

	12-Feb-2007: A quick skim on the mounting face to start off.  The casting will stand on this face for all subsequent operations.

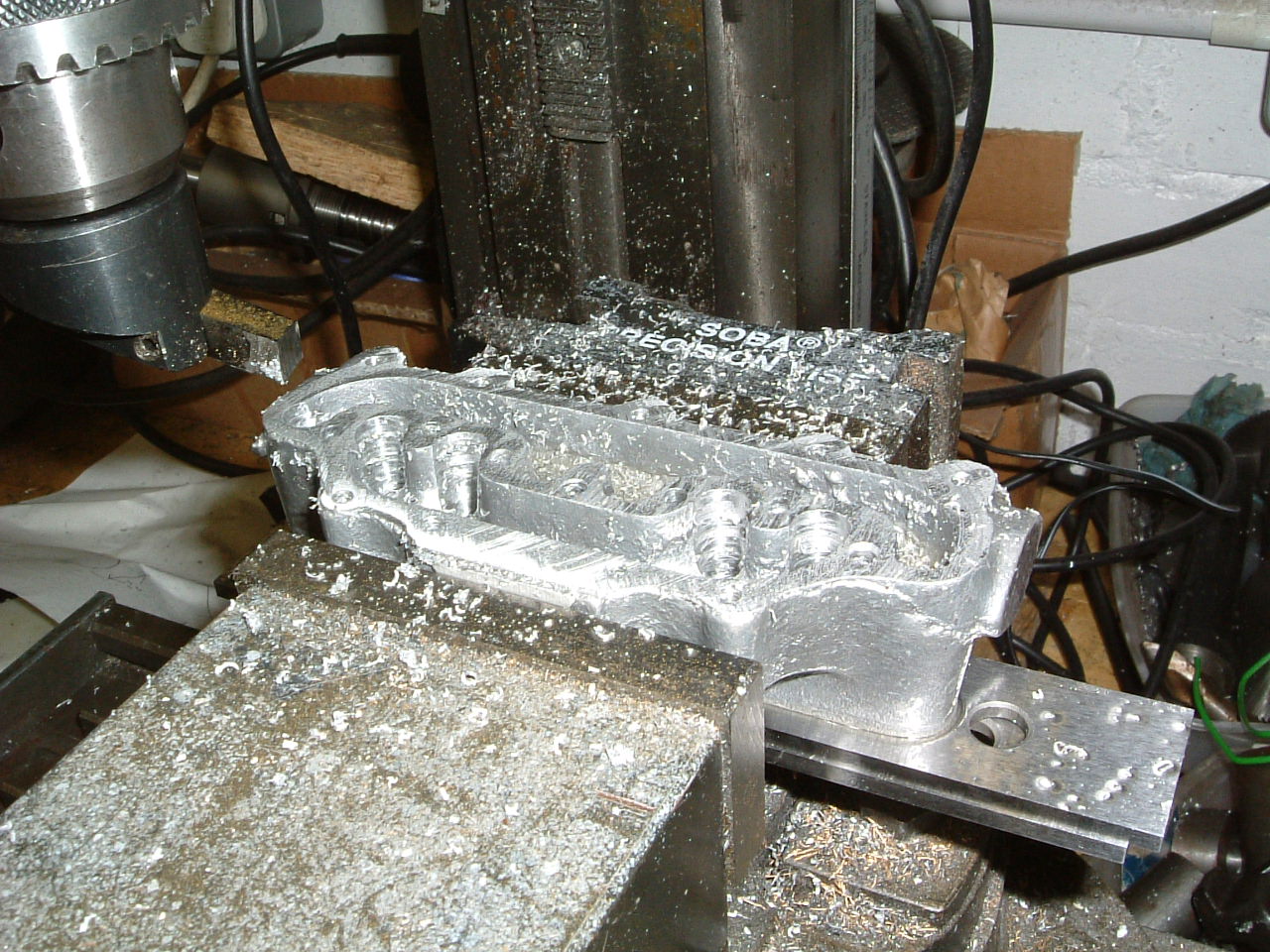

	Top skim being taken after all drilling and tapping operations.  One of these castings had been ruined by drilling the ports - the drill had wandered depending on the casting shape above.  This replacement casting had the port holes slot drilled to prevent a repeat of the problem.

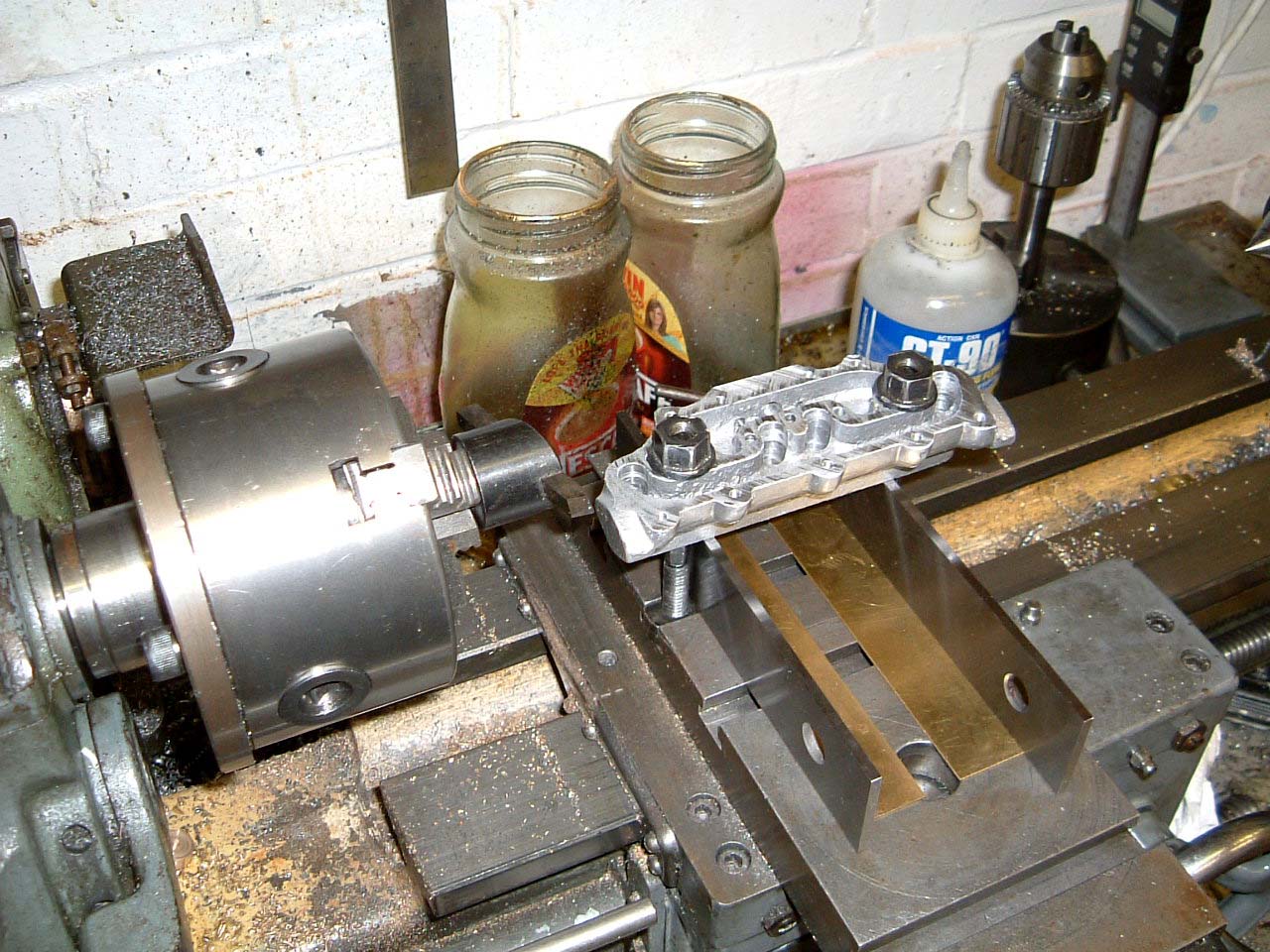

	23-Feb-2007: Setup for facing/drilling/tapping the exhaust hole.  It seemed a bit easier doing it this way instead of trying to stand the casting up vertically in the mini mill.
