4: Longintudinal slide Last updated: 30 Nov 2016 |
|
This slide is similar to the vertical slide, although I'm using brass for the slide dovetails rather than gauge plate. |
 |

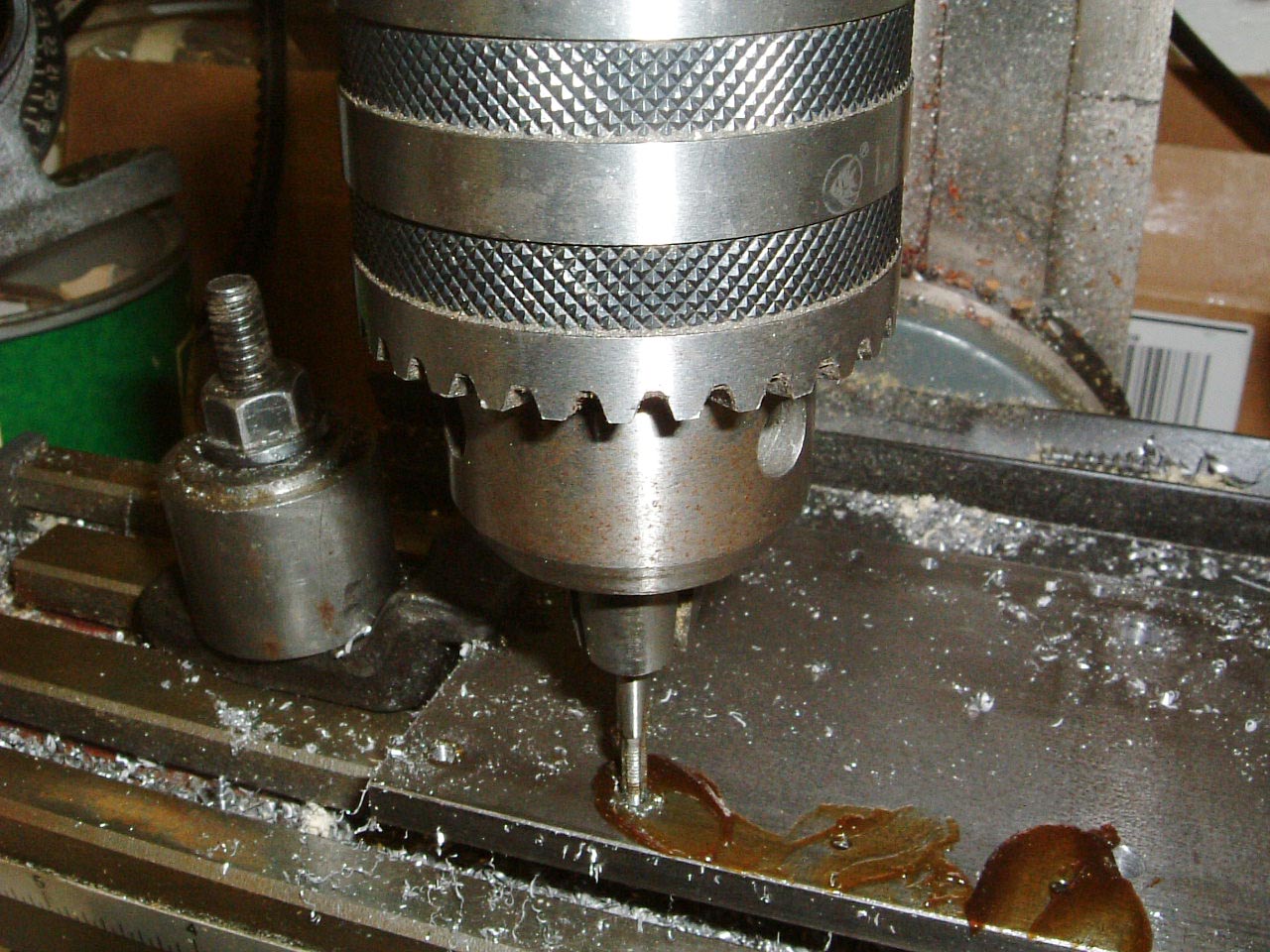

20-Dec-2003: This is the main part of the slide, the top plate. In the picture, the plate has been drilled and is now being tapped. A cheap trick is being used here, the mini mill is put between the high/low gears so it freewheels, and is used to hand tap the plate. This keeps the tap vertical. |
 |

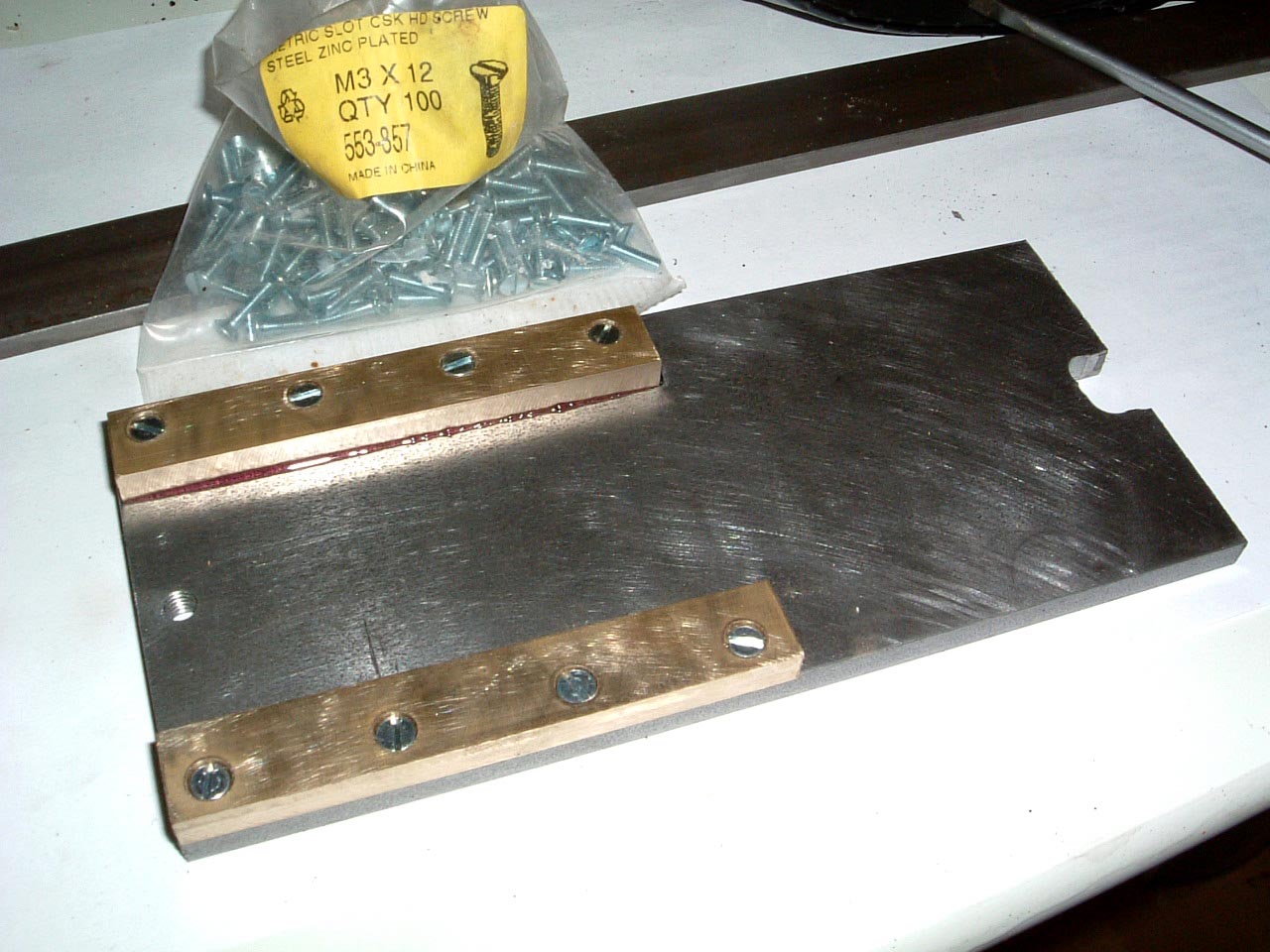

Brass strips have now been attached with 4 x M3 screws on each side and adhesive, but the dovetails themselves have not been cut yet. Note the cutout on the right to clear the thrust washer. |
 |

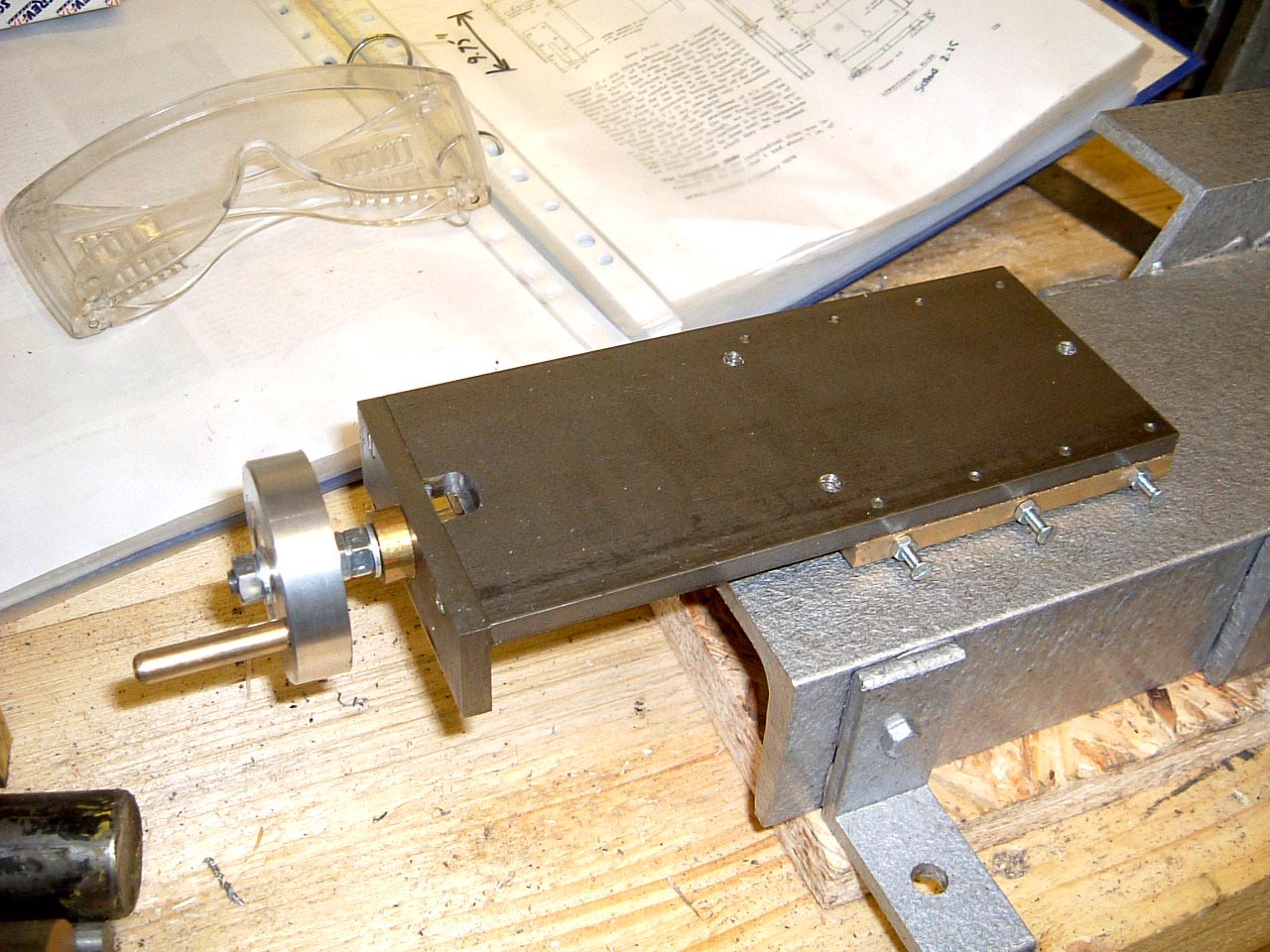

All done. The slide is pictured attached to the base, the handle is not graduated as this axis doesn't need it. |
